The Galactic Heroes Editor

Galactic Heroes ships 261 hero templates in 22 factions. Sooner or later somebody wants the 262nd — their own admiral, their own fleet, a company of their own invention — and the honest answer used to be “learn Mission Director, then edit the mod.”

Editing the mod is the worst possible answer. It breaks on the next release, it cannot be shared, and two people who both do it cannot both be installed.

The Galactic Heroes Editor is the other answer. It is a small Windows desktop app that writes a separate X4 extension which registers into the host mod through a published seam. You never open the host. You never write a line of MD. And the editor refuses to export a pack that the host would reject — or that a save could not recover from.

The three layers

The editor is the top of a stack, and it only works because the two layers under it exist.

Layer	What it is	Where it lives
1. Registration windows	The host opens a short window on every game load and signals “anyone want to register a fleet template?” Seven such windows exist: fleets, roster, spend plans, corporations, missions, the decision catalogue and factions.	inside `mlog_heroes`
2. Guest packs	A separate extension that subscribes to those signals and calls the host’s registrar. No `<diff>`, no file edit, no load-order requirement. Proved end to end by `mlog_heroes_example_pack`.	your own extension
3. This editor	Writes layer 2 for you, and checks it first.	a desktop app

The seam matters more than the tool. A pack built this way survives a host update, because it never touched the host. Two packs from two authors can both be installed, because neither one owns the table they write into.

Nothing about the mod is hardcoded in it

This is the design decision the whole program rests on, and it is worth stating plainly because it is unusual: the editor contains no list of archetypes, no list of perks, no list of ships and no list of factions.

Every one of those is read out of your own installation when the editor starts:

what it offers you	where it read it
6 archetypes, with their capability flags	`mlog_heroes_archetypes.xml`
28 perks, with what they apply to and their tier	`mlog_heroes_data.xml`
6 shared decision sets and their priorities	`mlog_heroes_roster.xml`
19 decision kinds and 26 task kinds	`mlog_heroes_catalog.xml`
all 261 host heroes and all 17 host fleets, in full	the host’s own roster and fleet files
390 ships, each attributed to the base game, a DLC or a mod	every archive and folder the game loads
every faction the game has, including ones mods add	`libraries/factions.xml` in every source

So when Galactic Heroes gains a seventh archetype or a new perk, it appears in the editor’s combo boxes with no new release of the editor. And when your install differs from the author’s — a DLC you do not own, a ship mod you do — the editor offers what you have, not what somebody else had.

The corollary is the reason the What was read tab exists at all: if a list somewhere in the editor is empty, the question is always “what did the harvest fail to read”, and that tab answers it. A silently empty list is the failure mode worth engineering against.

It reads the packed game without unpacking it

X4 ships its data in .cat/.dat pairs, and the usual assumption is that you need an unpacker. You do not. The .cat is a plain-text index — path size mtime md5, one line per file — and the .dat beside it is an uncompressed concatenation of those files in index order, with no header. A file’s offset is the sum of the sizes before it, so reading one is a seek.

The editor does that for every source the game will load, in load order: base game, each DLC, then each mod folder, packed or loose. Measured: 767 ms for 517,000 entries across 16 sources. Every archive is checked before it is trusted — the sizes must sum to the .dat length exactly — and one that fails is skipped and reported rather than read at wrong offsets.

Two consequences you will actually notice:

Ships a mod adds are selectable. The first source to introduce a macro name owns it. That matters more than it sounds: VRO ships 287 ship-macro files and only 24 are new ships — the other 263 are <diff> patches of vanilla hulls. Keeping the first occurrence attributes those to the base game, which is what your pack must actually depend on.
Factions a mod adds are selectable. Tested against three real faction mods: reemergence (6 factions), a Star Wars conversion (34), chemodun’s xenon_buff (2). The Star Wars file has 36 <faction id= elements and the parser takes 34 — the other two are khaak and xenon under a <replace>, which rewrites vanilla factions rather than adding any.

What you can author

Object	Registers into	Re-exporting replaces it?
Fleet templates	the fleet table	yes — the host wipes and rebuilds the table on every load
Hero templates	the roster	yes
Spend plans	the spend table	yes
Corporation missions	the mission table	yes
Corporations	the company register	no — see below

Corporations are the exception, and the editor says so in four places. A fleet or a hero is a catalogue entry that lives in the mod. A corporation owns money, contracts, favours, a share register and a chronicle, and all of that lives in your save. Registration for a company is ensure-exists: some fields refresh every load, founding capital is read once, and a company that has reached a save can never be removed.

That permanence is why an id collision is an error here rather than a warning.

Requirements

Windows with the .NET 9 desktop runtime
X4 Foundations installed, and Galactic Heroes installed or checked out — the editor needs to read both
No connection to anything. The editor is offline and writes only where you point it.

Getting it

powershell -ExecutionPolicy Bypass -File tools/build.ps1
powershell -ExecutionPolicy Bypass -File tools/make-shortcut.ps1

Use build.ps1 rather than a bare dotnet build. The bare command defaults to Debug while the desktop shortcut launches Release, and the two can drift by a day without anything looking wrong. build.ps1 builds Release, runs both test lanes from the Release binary, and refuses outright if the binary is older than a source file.

The window title carries its own build stamp for the same reason — [build 2026-09-18 17:15], and DEBUG when it is one. Which build am I looking at should be a reading, not a deduction from file timestamps.

First run

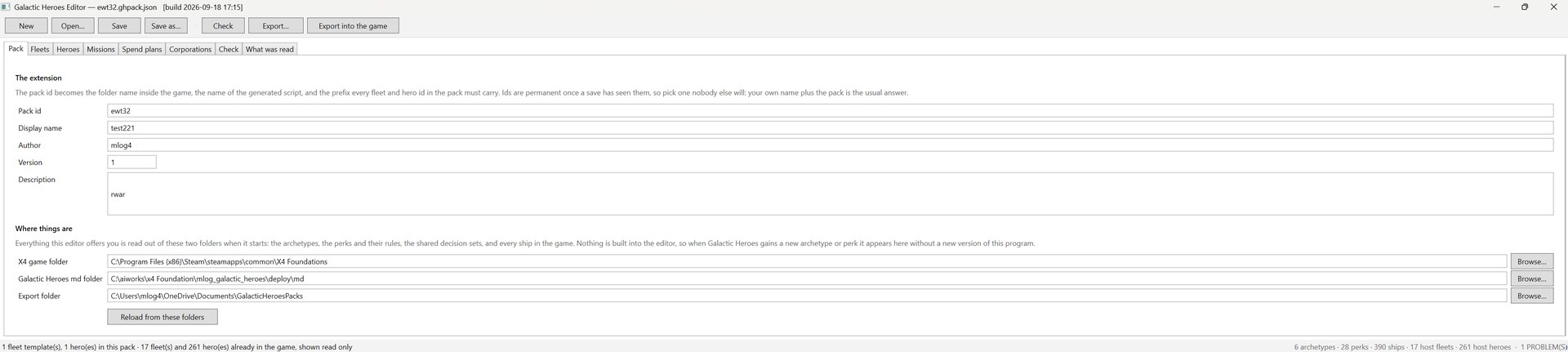

Everything starts on the Pack tab, in the Where things are section. Three folders:

Field	What it is
X4 game folder	your X4 Foundations install. Everything about ships, factions and DLC comes from here.
Galactic Heroes md folder	the `md` folder of the installed or checked-out host mod. Every archetype, perk, hero and fleet comes from here.
Export folder	where Export… writes a finished pack. Not the game — that is a separate button.

Press Reload from these folders after changing any of them. The status bar’s right-hand side is the receipt: 6 archetypes · 28 perks · 390 ships · 17 host fleets · 261 host heroes. If those read zero, the paths are wrong, and What was read → Reading will say why.

The paths are remembered between sessions in %AppData%\GalacticHeroesEditor\settings.json.

The shape of a working session

Pack tab — pick a pack id. It becomes the folder name in the game, the name of the generated script, and the prefix every id in the pack must carry. Ids are permanent once a save has seen them, so pick one nobody else will: your own name plus the pack is the usual answer.
Author fleets, heroes, plans, missions, companies — or copy something the host already has and edit the copy.
Check — 104 rules, and they run by themselves a moment after every edit. A finding shows on the tab header, on the object’s row, above the form, and as a red or amber outline on the very box that sets the field. Errors block export; warnings do not.
Export… to a folder, or Export into the game to write straight into extensions/<packid>.
Start the game and look in debug.log for the pack’s own build banner.

The walkthrough does all five with one hero, and the reference covers every screen.

Where a pack ends up

Export writes a complete X4 extension — four files, nothing else:

<packid>/
├── content.xml        the manifest
├── md/<packid>.xml    the script: a build banner and one registration call per object
├── t/0001.xml         the text page: every name, rank, story and mission line, numbered
└── README.txt         what was exported, where it goes, and how to translate it

The script is the same shape as the hand-written example pack: cues marked instantiate="true", a build banner written as a literal so a deploy tool can verify the mod on disk is the one running, and one registrar call per template. It contains no <diff> and writes into no host table directly, so load order between your pack and the host does not matter.

The text page is what makes a pack translatable. Every string a player reads — a founder’s name, a biography, a company’s name and story, a mission’s title — is written to t/0001.xml on the pack’s own page, and the script refers to it as readtext.{page}.{id}, exactly as the host refers to its own text. That file is the default page: it holds every string in the language you wrote, and X4 shows it to every player whose language has no page of its own. To add a language, copy it to t/0001-l007.xml (Russian; the generated README.txt lists the others) and translate the entries, keeping the ids — they never move between exports. A rank the host already has is written as the host’s own reference, so it stays translated in every language the host ships without you doing anything. The page number is chosen free of every page the installed game, DLC and mods declare, and shown on the Pack tab; keep it, because a translation names it.

Every DLC a chosen ship comes from is declared an optional dependency, exactly as the host does it. A hard dependency makes the extensions menu scream at a player who does not own that DLC; an optional one lets the pack load and simply not build that ship.

One thing the generator does that you could not do by hand: it writes the shared decision sets out as literals. The host keeps them as locals of its seed library, where a guest cannot name them. Copying them by hand is the cost the example pack documents — the editor pays it once, on everyone’s behalf.
